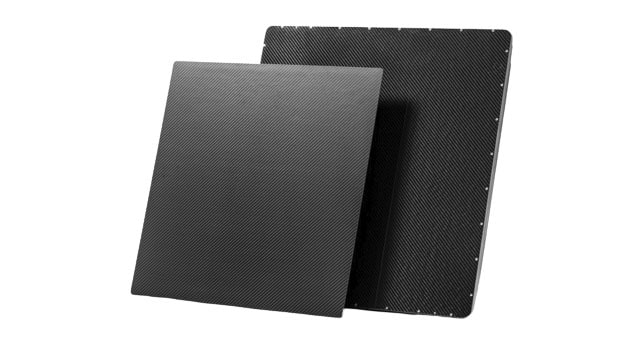

FLAT PANEL X-RAY DETECTOR
XD300
Dunlee’s Flat Panel X-ray Detector XD300 supports delivery of exceptional images. Fine-tuned to the needs of oncology, it provides a large field of view (43 cm x 43 cm (17 in x 17 in) to capture large regions-of-interest while the patient is in the treatment position, fast frame speed (150 fps) to decrease motion artifacts, and rapid system integration. It offers state of the art performance in DQE, linearity and MTF, as well as a high, 16-bit dynamic range. The reset light technology aids in increasing contrast.
Flat panel detector technology delivers excellent soft tissue visualization, enabling clinicians to verify the precise location and size of the tumor and ensure that tumor contours match planning data.
Enhanced soft tissue visualization and superb image quality to carry out the most advanced procedures, thanks to the detector’s state-of-the-art performance in DQE, linearity, MTF and high dynamic range (16 bits).
In addition, the reset light technology removes memory effects resulting in negligible residual signals between frames, which substantially aids in increasing contrast and visibility of edges, decreasing the need for re-scans.
Ease of integration with the image pre-processing software package: No need for other additional hardware in your system such as an additional processing unit. All detector’s controlling and calibration is handled via the software packaging, so the integration is faster and simpler.
Specifications
XD300
XD300
DESCRIPTION | DEFINITION | MIN | TYPICAL | MAX | UNIT |
Sensitive elements | | | | | |
| Sensor technology | a-Si (Amorphous silicon array) | | | | |
| Scintillator | CsI | | | | |
| Pixel Pitch | | - | 148 | - | um |
| X-ray sensitive area | | | | | |
| width (X) | | 2860 | - | - | pel |
| width (X) | | 423 | - | - | mm |
| width (Y) | | 2874 | - | - | pel |
| width (Y) | | 425 | - | - | mm |
Operational features | | | | | |
| A/D conversion | | - | 16 | - | bits |
| Number of gains | 6 settings from g0 (high gain) to g5 (smallest) | - | 6 | - | gains |
| Available non binned or binned modes | 1x1, 2x2, 3x3, 4x4 | | | | |
| Zoom | programmable | | | | |
| Number of Available modes | 32 modes | | | | |
