SOLUTIONS FOR CARDIO / VASCULAR IMAGING

Based on the most successful Cardio/Vascular X-ray imaging chain in the market Dunlee provides a variety of product bundles at different power levels ideally suited for high performance interventional systems.

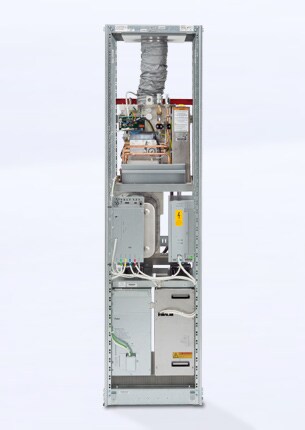

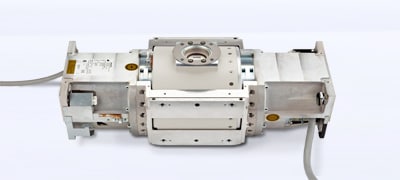

Every product bundle is available as dedicated Cardio or Vascular version. It comprises an X-ray tube assembly, generator, cooling unit, high voltage connections and a sophisticated service concept to keep service costs and downtime of your system down.

Dunlee product bundles for Cardio/Vascular stand for


Excellent image quality at low dose

  • Fast Pulses by Grid Switch Electronics embedded in Tube Housing (optional)
  • State of the art microprocessor controlled generator providing high-precise dose control



Outstanding reliability

  • Fast cooling by metal-lubricated Spiral Groove Bearing Tube
  • Full metal ceramic tube insert designed for extreme low arcing rate
  • Advanced thermal modelling integrated in generator to protect tube overload



Advanced Serviceability

  • Modular subunit architecture with only 11 field replaceable units
  • Sophisticated tools for easy and fast fault finding
  • Automatic tube adaptation (optional).

Key Specifications

Max Generator Power (kW)

80-100

Emission current (mA)

10-1,000

Exposure time (ms)

1-16,000

Max Tube Voltage (kVp)

125

Cardio Version

Focal spot size

0.5/0.8

Load capability (kW)

45/85

Anode Angle Cardio

9 °

Vascular version

Focal spot size

0.4/0.7

Load capability (kW)

30/65

Anode Angle Vascular

11°

Max effective assembly heat storage

5.4 MHU
