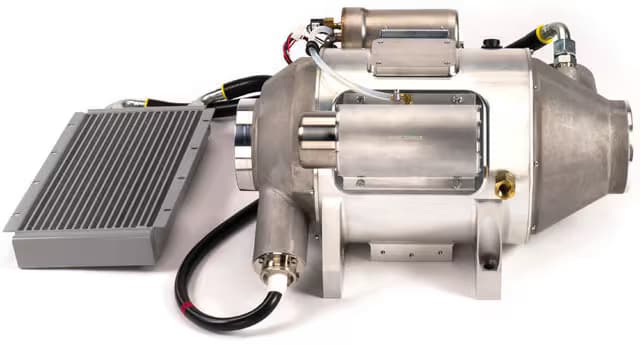

The CTR2150 tube assembly offers a wide range of features for flexibility and is especially well suited for mid-range CT applications. You can adjust these features to customize a tube to your specific needs in the CT performance segment. Based on a tried and true design, this tube offers a long lifetime and low maintenance costs.
With our extensive knowledge of X-ray tubes, high-voltage generators, X-segments and integrated imaging solutions, we are able to help you select the right components for your application during the development phase and provide support throughout the entire product lifecycle.
Maximum Power [kW](Nominal CT anode input power (LF/SF)) | 50/36 |
Maximum Nominal Gantry Speed [rpm](Depending on Source to ISO center distance) | 0.5 sec (120 rpm) |
Maximum G-Force for Operation [g] | 8.2 |
Nominal Tube Voltage [kV] | 140 |
Focal Spots [mm] | Large |
Dynamic Focal Spot | X-DFS |
Polarity | Bipolar |
Documentation | Download leaflet |
