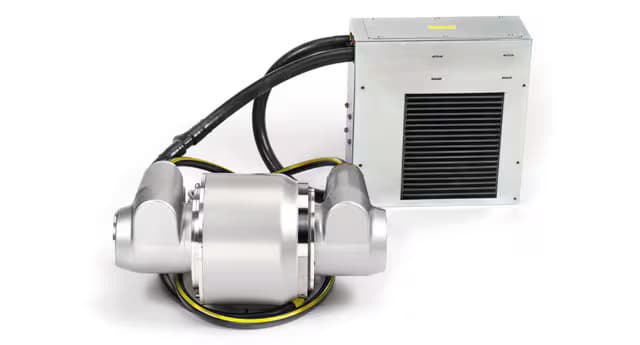

The CTR1700 series tubes offer a wide range of features for flexibility and are especially well suited for entry-level CT applications. We can adjust these features and customize a tube to help meet your individual needs in the CT entry segment. Based on a tried and true design, the tube offers a good lifetime and low maintenance costs.
With our extensive knowledge of X-ray tubes, high-voltage generators, X-segments and integrated imaging solutions, we are able to help you select the right components for your application during the development phase and provide support throughout the entire product lifecycle.
Maximum Power [kW](IEC Rated (4/600 sec repeated) | 28 - 42 |
Maximum Nominal Gantry Speed [rpm](@570mm FS to ISO distance) | Up to 77 |
Maximum G-Force for Operation [g] | 5.3 |
Nominal Tube Voltage [kV] | 140 |
Focal Spots [mm] | Large |
Dynamic Focal Spot | X-DFS |
Polarity | Bipolar |
Documentation | Download leaflet |
