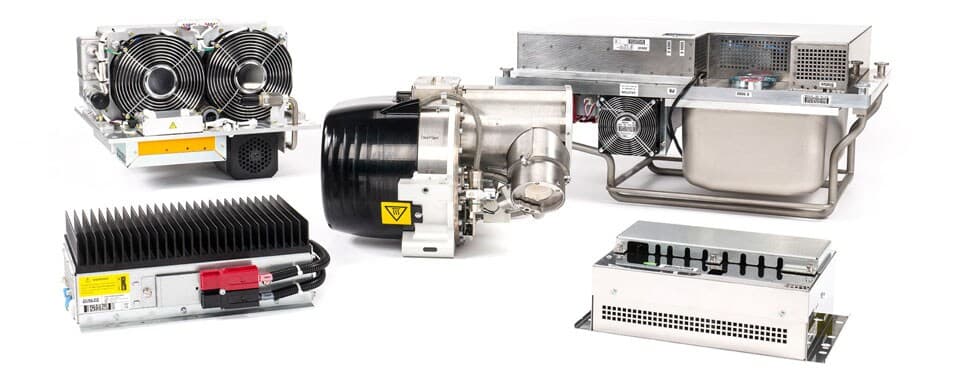

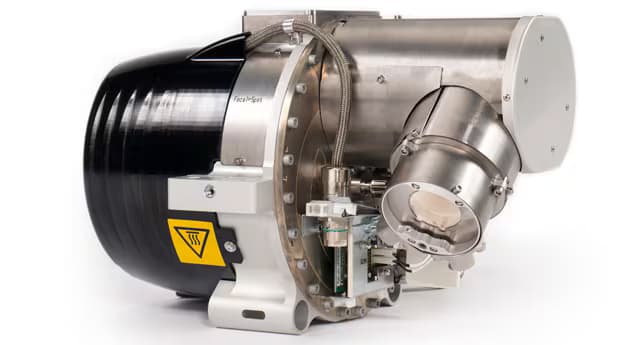

The Xpert bundle with CT6500 combines high performance with flexibility in designing a CT gantry. It ideally suits the needs of mid range to high end CT systems. The Xpert bundle is part of the product bundle range, which consists of separate components that have been perfectly matched to each other for outstanding performance through extensive integration tests. It consists of an X-ray tube with CoolGlide™, generator, cooling unit and cables. Additionally, it can be combined with a power distribution unit and a detector.
This product package provides solutions along the way, from development through after sales service to support your business process.
The components are supplied readily calibrated and configured to help reduce your required R&D resources and costs. All cables are preassembled and color coded for an easy and fast system integration.
The use of simplified, higher-level commands means that your team does not require in-depth knowledge of tubes and generators. On top of that we offer an all-round support during development and throughout the whole product lifecycle. You are set for efficient production and clinical workflow.
Additionally the bundle can be combined with CP700, a power distribution unit.
Maximum Power [kW](IEC Rated (4/600 sec repeated) | 120 |
G-load [g] | 32 |
Maximum Nominal Gantry Speed [rpm](@570mm FS to ISO distance) | 240 +2% |
Nominal Tube Voltage [kV] | 140 |
Focal Spots [mm] | Large: 1.1 x 1.2 |
Dynamic Focal Spot | X-DFS: Yes |
Polarity | Unipolar |
Documentation | Download leaflet |
