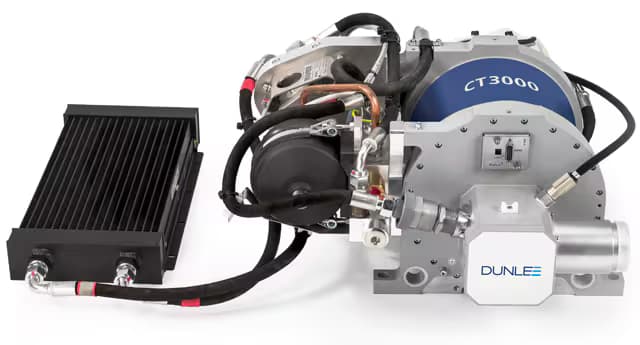

The CT3000 brings the benefits of liquid metal bearing (LMB) technology to your value segment systems. It features Dunlee’s exclusive CoolGlide™ LMB technology, which delivers excellent heat dissipation for continuous scanning, supporting high throughput. The frictionless operation decreases wear on the tube, resulting in a longer life than tubes with traditional ball bearings.
Maximum Power [kW](IEC Rated (4/600 sec repeated) | 60 |
G-load [g] | 9.5 |
Maximum Nominal Gantry Speed [rpm](@570mm FS to ISO distance) | 120 |
Maximum Anode Heat Storage | 6 (IEC 613) / 19 Effective |
Nominal Tube Voltage [kV] | 140 |
Focal Spots [mm] | Large: 1.0 x 1.0 |
Dynamic Focal Spot | X-DFS: Yes |
Polarity | Bipolar |
Documentation | Download leaflet |
