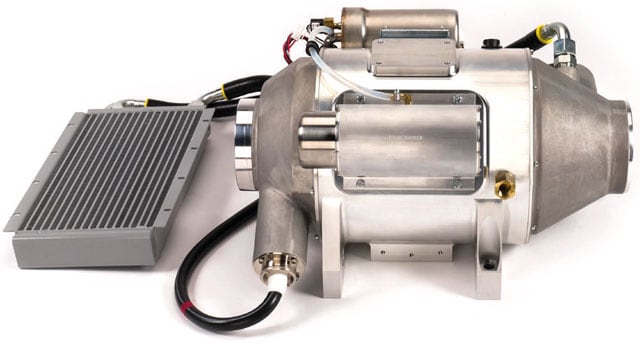

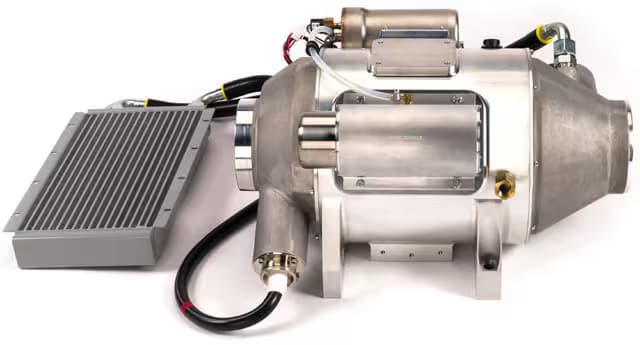

CT X-RAY TUBE

CTR2150

DUNLEE CTR21xx

PROVEN TRACK RECORD AND ADVANCED IMAGE RESOLUTION

The CTR2150 tube assembly offers a wide range of features for flexibility and is especially well suited for mid-range CT applications. You can adjust these features to customize a tube to your specific needs in the CT performance segment. Based on a tried and true design, this tube offers a long lifetime and low maintenance costs.
KEY BENEFITS

Advanced image resolution

  • X-deflection improves image resolution for sharp images and detailed visualization



Continuous patient throughput

  • Features high anode heat storage for scanning a large number of patients



Proven design

  • More than 8,000 tubes of this tube family* have been produced since introduction
  • Reliable design for exceptional system quality

* Includes CTR2140 and CTR2150 series tubes

We provide solutions that meet ambitious needs for your  success in CT.



With our extensive knowledge of X-ray tubes, high-voltage generators, X-segments and integrated imaging solutions, we are able to help you select the right components for your application during the development phase and provide support throughout the entire product lifecycle.

Specifications CTR2150

Maximum Power [kW]

(Nominal CT anode input power (LF/SF))

50/36

Maximum Nominal Gantry Speed [rpm]

(Depending on Source to ISO center distance)

0.5 sec (120 rpm)
Maximum G-Force for Operation [g]
8.2
Nominal Tube Voltage [kV]
140
Focal Spots [mm]
Large
Small
1.0 x 1.0
0.5 x 1.0
Dynamic Focal Spot
X-DFS
Z-DFS
Yes
No
Polarity
Bipolar
Documentation
