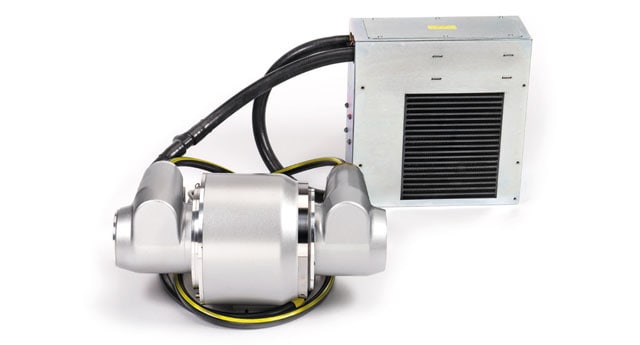

CT X-RAY TUBE

CTR1700 series

DUNLEE CTR17xx

GOOD QUALITY, AND PRICE RATIO

The CTR1700 series tubes offer a wide range of features for flexibility and are especially well suited for entry-level CT applications. We can adjust these features and customize a tube to help meet your individual needs in the CT entry segment. Based on a tried and true design, the tube offers a good lifetime and low maintenance costs.

KEY BENEFITS

Best-in-class focal spot

  • The smallest focal spot in the entry-level CT tube segment for great image quality from the start



Optimized for cost reduction

  • The most lightweight CT tube in our portfolio, which helps avoid system-level costs
  • Compact design for quick and convenient installation and thus reduced service costs



Proven design

  • CTR1700 series tube design invented and optimized by Dunlee over the course of more than 10 years
  • Over 7,000 tubes produced for maximum confidence in the most experienced manufacturer of CTR1700 series tubes

We provide solutions that also meet ambitious needs for our customers‘ success.



With our extensive knowledge of X-ray tubes, high-voltage generators, X-segments and integrated imaging solutions, we are able to help you select the right components for your application during the development phase and provide support throughout the entire product lifecycle.

Specifications CTR1700 series

Maximum Power [kW]

(IEC Rated (4/600 sec repeated)

28 - 42

Maximum Nominal Gantry Speed [rpm]

(@570mm FS to ISO distance)

Up to 77

Maximum G-Force for Operation [g]

5.3

Nominal Tube Voltage [kV]

140

Focal Spots [mm]

Large
Small
0.6 x 1.3
0.4 x 0.7

Dynamic Focal Spot

X-DFS
Z-DFS
No
No

Polarity

Bipolar

Documentation
