Specific requirements:
- Optimal line rate for reciprocating bucky in fixed systems
- Smart, portable grid solutions for mobile systems
- High patient flexibility (from bariatric to pediatrics)
GENERAL RADIOGRAPHY
PERFECT GRID SOLUTIONS FOR YOUR SYSTEM
Better transmission of the primary X-rays
Up to 30% less weight
Customized design providing excellent system performance
Smart portable solutions

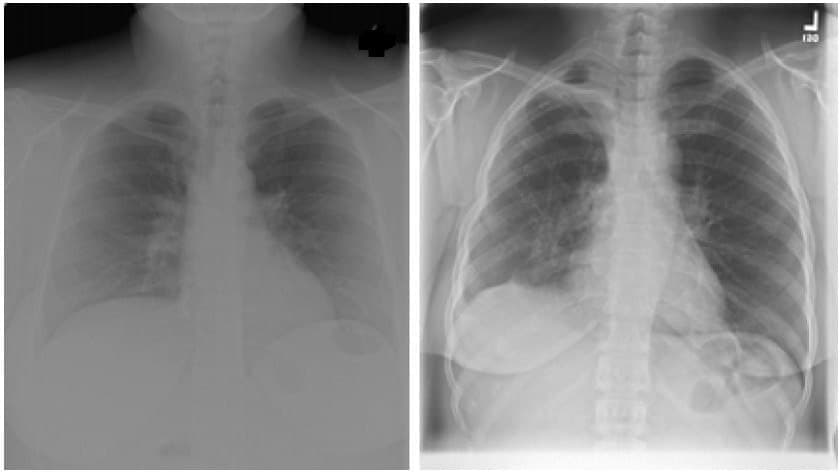

left: without grid / right: with grid
GENERAL PURPOSE GRIDS
| line rate/cm | available ratios |
| 36 | 6:1 | 8:1 | 10:1 | 12:1 | 21:1 |
| 40 | 6:1 | 7:1 | 8:1 | 10:1 | 12:1 | 15:1 |
| 44 | 8:1 | 10:1 | 12:1 | 15:1 |
| 50 | 9:1 | 12:1 |
| 52 | 8:1 | 10:1 | 12:1 |
| 60 | 9:1 | 11:1 | 13:1 | 15:1 |
| 70 | 10:1 | 13:1 | 17:1 |
| 74 | 14:1 |
| 80 | 12:1 | 15:1 |
