CT PRODUCT BUNDLE

CT8000

EXTRAORDINARY IMAGE QUALITY COMBINED WITH WIDE COVERAGE

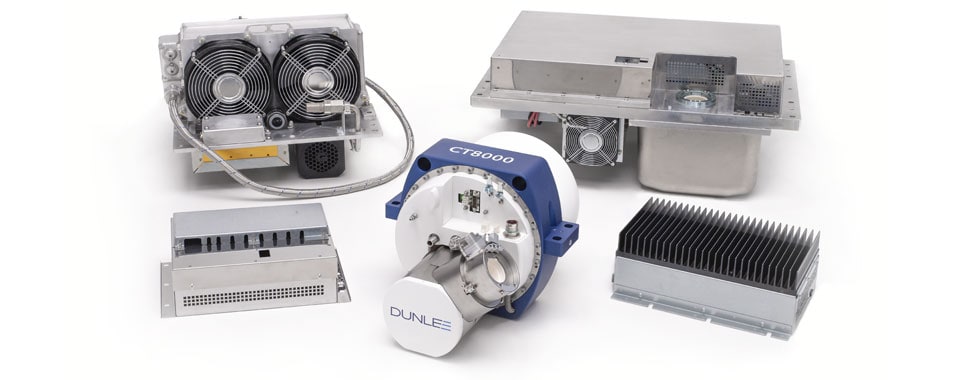

The Xpert bundle with CT8000 is the most advanced product bundle in Dunlee’s components portfolio. It has been developed and designed to perfectly fit into high-end CT systems. The Xpert bundle is part of the product bundle range consisting of separate components which have been perfectly matched through extensive integration testing to achieve outstanding performance. It consists of an X-ray tube with CoolGlide™, generator, cooling unit and cables.

KEY BENEFITS

Solution provider

The Xpert bundle comes pre-integrated and pre-calibrated for several clinical applications
Important certificates and approvals are included for a fast time to market

High-resolution one-rotation scan

The wide X-ray tubes’ coverage allows entire organs up to 16 cm to be scanned in one single rotation
High-resolution images due to limited risk of organ movement help avoid multiple examinations

Excellent cooling ability

The unipolar tube design with exceptional cooling capacity and CoolGlide™ enable high patient throughput
Less waiting time before next scan, even with high-power applications

Xpert bundle with CT8000 for fast integration into your development process, thus speeding up the time to market.

This product bundle provides solutions that support your business process, from development all the way to aftersales service.

The components are supplied readily calibrated and configured to help reduce your required R&D resources and costs. All cables are preassembled and color-coded for fast and easy system integration.

The use of simplified, higher-level commands means that your team does not require in-depth knowledge of tubes and generators. On top of that, we offer all-round support during development and throughout the whole product lifecycle. You are set for an efficient production and clinical workflow.

Additionally the bundle can be combined with CP700, a power distribution unit.

The CP700 eases the implementation of the Xpert bundle into the CT gantry.
The readily configured CP700 helps to reduce your required R&D resources and costs.
Completing the Xpert bundle with the CP700 speeds up the time to market.

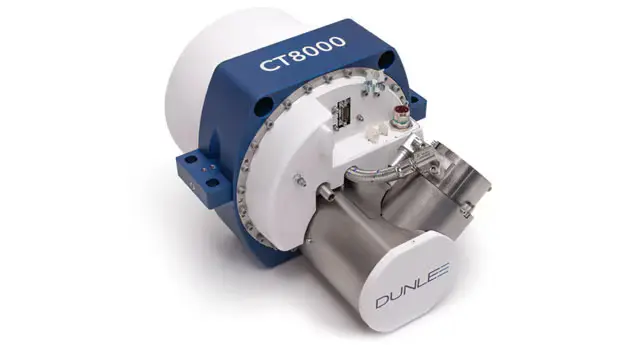

Specifications CT8000

Maximum Power [kW] (IEC Rated (4/600 sec repeated)	100
G-load [g]	33.1
Maximum Nominal Gantry Speed [rpm] (@575mm FS to ISO distance)	220 +2% (240 optionally)
Nominal Tube Voltage [kV]	140
Focal Spots [mm]	Large: 1.1 x 1.2 Small: 0.6 x 0.8 Extra Small (optional): 0.4 x 0.8
Dynamic Focal Spot	X-DFS: Yes Z-DFS: Yes
Polarity	Unipolar
Documentation	Download leaflet
