CT PRODUCT BUNDLE

CT6000

EXCELLENT COOLING CAPABILITY MEETS HIGH-RESOLUTION IMAGING

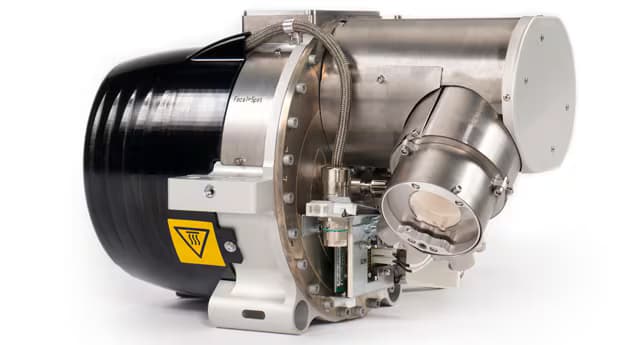

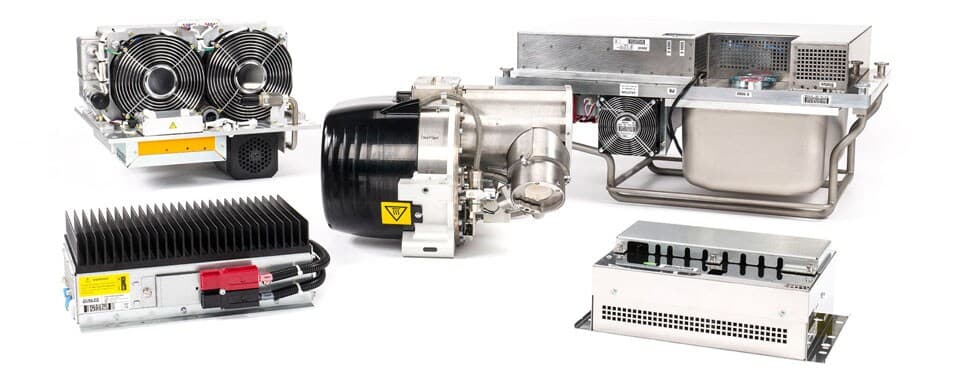

The Xpert bundle with CT6000 meets your needs for an ideal integration into mid-range to high-end CT systems. It provides an exceptional image quality in CT examinations. The Xpert bundle is part of the product bundle range, which consists of separate components that have been perfectly matched to each other for outstanding performance through extensive integration tests. It consists of an X-ray tube with CoolGlide™, generator, cooling unit and cables. Additionally, it can be combined with a detector.

KEY BENEFITS

Solution provider

The product bundle comes pre-integrated and pre-calibrated for each clinical application
Important certificates and approvals are included and have been tested for a fast time to market

Sharp images and detailed visualization

Outstanding image quality due to the availability of an extra small focal spot
X- and Z-deflection for high image resolution due to reduced image artefacts

High patient throughput

High patient throughput with very short cooling period between patients due to the unipolar tube design
Fast gantry rotation for shorter patient screening cycles

Xpert bundle with CT6000 for a fast integration into your development process to speed up the time to market.

This product bundle provides solutions along the way, from development through after sales service to support your business process.

The components are supplied readily calibrated and configured to help reduce your required R&D resources and costs. All cables are preassembled and color coded for an easy and fast system integration.

The use of simplified, higher-level commands means that your team does not require in-depth knowledge of tubes and generators. On top of that we offer an all-round support during development and throughout the whole product lifecycle. You are set for efficient production and clinical workflow.

Additionally the bundle can be combined with CP700, a power distribution unit.

The CP700 eases the implementation of the Xpert bundle into the CT gantry.
The readily configured CP700 helps to reduce your required R&D resources and costs.
Completing the Xpert bundle with the CP700 speeds up the time to market.

Specifications CT6000

Maximum Power [kW] (IEC Rated (4/600 sec repeated)	100
G-load [g]	33.1
Maximum Nominal Gantry Speed [rpm] (@575mm FS to ISO distance)	220 +2% (240 optionally)
Nominal Tube Voltage [kV]	140
Focal Spots [mm]	Large: 1.1 x 1.2 Small: 0.6 x 0.7 Extra Small (optional):0.4 x 0.7
Dynamic Focal Spot	X-DFS: Yes Z-DFS: Yes
Polarity	Unipolar
Documentation	Download leaflet

Additionally, this bundle can be combined with a detector.

Learn more about detector CD500
