CT PRODUCT BUNDLE

CT4000

DUNLEE CT4000

HIGH RELIABILITY AND HIGH
PERFORMANCE DESIGN FOR
HIGH WORKLOAD

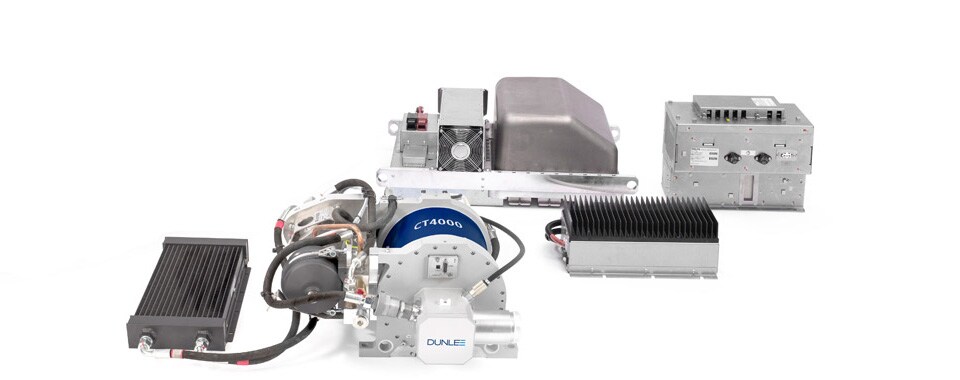

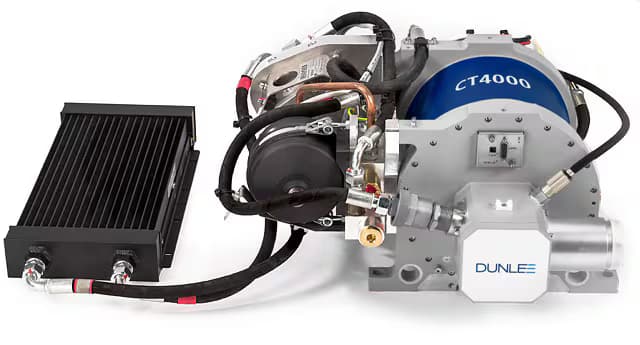

The Xceed Bundle with CT4000 is perfectly suited for high clinical through-put needs where high performance is required. It features CoolGlide™ liquid metal bearing (LMB) technology, which delivers excellent heat dissipation for continuous scanning, supporting high throughput. The frictionless operation of LMB decreases wear on the tube, resulting in a longer life than traditional ball bearing tubes. The Xceed bundle consists of an X-ray tube with Cool-Glide™ LMB, generator, cooling unit and cables. Additionally, it can be combined with a Dunlee detector.

KEY BENEFITS

High Throughput

  • Excellent cooling capacity for continuous scanning
  • Less waiting time due to overheating



Faster Workflow

  • Continuous rotation of the anode, saves preparation time, no start and stop like with ball bearings
  • 90% fewer scan interruptions through arcing for continuous workflow



Higher Reliability

  • Average lifetime of CoolGlide LMB tubes exceeds traditional Ball Bearing tubes by far

DUNLEE CT4000

Xceed bundle with CT4000 for a fast integration into your development process to speed up the time to market.



This product bundle provides solutions along the way, from development through after sales service to support your business process.



The components are supplied readily calibrated and configured to help reduce your required R&D resources and costs. All cables are preassembled and color coded for an easy and fast system integration.



The use of simplified, higher-level commands means that your team does not require in-depth knowledge of tubes and generators. On top of that we offer an all-round support during development and throughout the whole product lifecycle. You are set for efficient production and clinical workflow.

Specifications CT4000

Maximum Power [kW]

(IEC Rated (4/600 sec repeated)

80

G-load [g]

21.5

Max. Scanner Speed

(@570mm FS to ISO distance)

172 rpm
Optional: Up to 0.33 sec (180 rpm)

Nominal Tube Voltage [kV]

140

Focal Spots [mm]

Large: 1.0 x 1.0
Small: 0.5 x 1.0

Dynamic Focal Spot

X-DFS: Yes

Polarity

Bipolar

Documentation

Dunlee Logo

About Dunlee

Dunlee is a brand of the Philips Company Group and distributes all products, solutions and services for the third-party imaging business. The product portfolio includes CT, MR and X-ray solutions for OEMs and 3D printed tungsten products.
