CT PRODUCT BUNDLE

CT3000

DUNLEE CT3000

HIGH RELIABILITY DESIGN FOR HIGH WORKLOAD

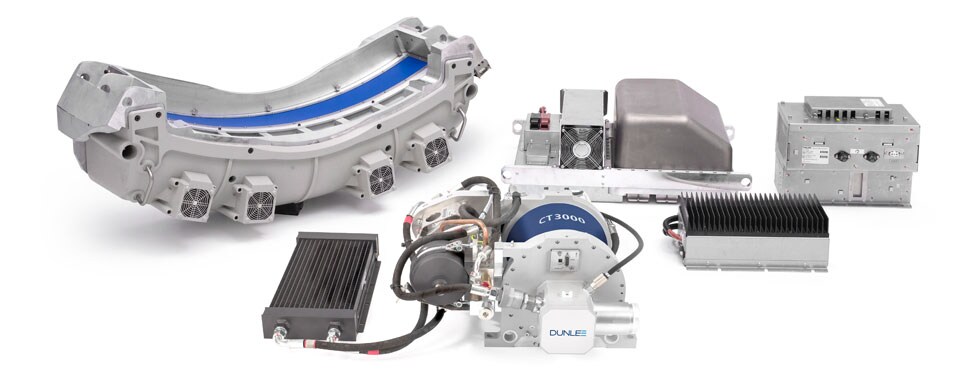

The Xceed Bundle with CT3000 is designed for high clinical  workloads. It features CoolGlide™ liquid metal bearing (LMB) technology, which delivers excellent heat dissipation for continuous scanning, supporting high throughput. The frictionless operation of LMB decreases wear on the tube, resulting in a longer life than traditional ball bearing tubes. The Xceed bundle consists of an X-ray tube with CoolGlide™ LMB , generator, cooling unit and cables. Additionally, it can be combined with a Dunlee detector.
KEY BENEFITS

High Throughput

  • Excellent cooling capacity for continuous scanning
  • Less waiting time due to overheating



Faster Workflow

  • Continuous rotation of the anode, saves preparation time, no start and stop like with ball bearings
  • 90% fewer scan interruptions through arcing for continuous workflow



Higher Reliability

  • Average lifetime of CoolGlide™ LMB tubes exceeds traditional Ball Bearing tubes by far.
DUNLEE CT3000

Xceed bundle with CT3000 for a fast integration into your development process to speed up the time to market.



This product package provides solutions along the way, from development through after sales service to support your business process.



The components are supplied readily calibrated and configured to help reduce your required R&Dresources and costs. All cables are preassembled and color coded for an easy and fast system integration.



The use of simplified, higher-level commands meansthat your team does not require in-depth knowledge of tubes and generators. On top of that we offer an all-round support during development and throughout the whole product lifecycle. You are set for efficient production and clinical workflow.

Specifications CT3000

Maximum Power [kW]

(IEC Rated (4/600 sec repeated)

60
G-load [g]
9.5

Maximum Nominal Gantry Speed [rpm]

(@570mm FS to ISO distance)

120
Maximum Anode Heat Storage
6 (IEC 613) / 19 Effective
Nominal Tube Voltage [kV]
140
Focal Spots [mm]
Large
Small
1.0 x 1.0
0.5 x 1.0
Dynamic Focal Spot
X-DFS
Yes
Polarity
Bipolar
Documentation
Additionally, this bundle can be combined with a detector.
Dunlee Logo

About Dunlee

Dunlee is a brand of the Philips Company Group and distributes all products, solutions and services for the third-party imaging business. The product portfolio includes CT, MR and X-ray solutions for OEMs, CT replacement tubes and 3D printed tungsten products.
