CT DETECTOR CD500

128 ROW

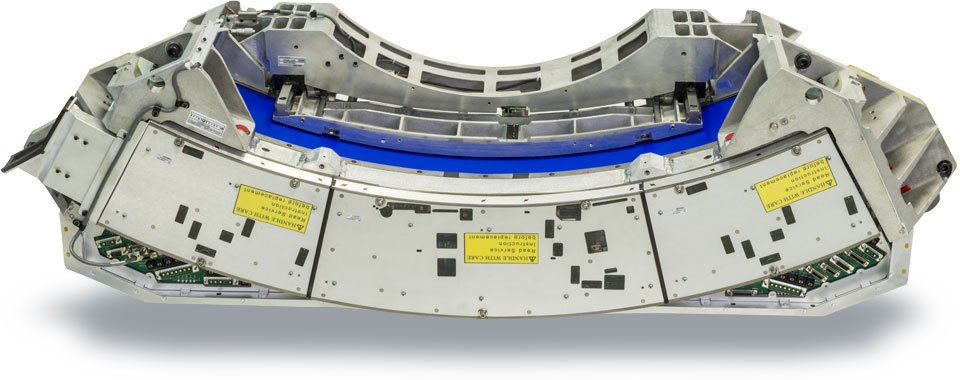

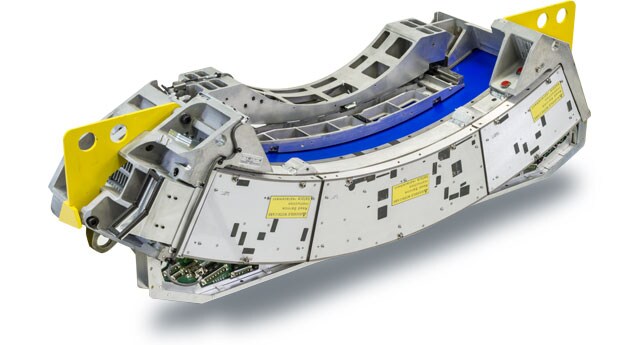

DUNLEE 128 Row Detector

OUR MOST ADVANCED DETECTOR FOR HIGH-RESOLUTION IMAGING

The CD500 is a 128-row detector designed to meet the demands of the high-end CT scanner segment. Thanks to its very low electronic noise, it provides outstanding image quality even during low dose applications. Excellent radiation hardness ensures no compromises in reliability.

KEY BENEFITS

Our best image quality

  • Spherical geometry and advanced 2D anti-scatter grid for high signal-to-noise ratio
  • Low scatter to primary ratio at wide coverage
    for superb image quality



High patient throughput

  • Our widest coverage, which reduces the scan time up to 50% compared to the CD300



Superb thermal characteristics

  • Low power per channel for easy stabilization
    of required temperature
  • Autonomous temperature stabilization
    through a combined heating and cooling
    control loop

DUNLEE 128 Row Detector

Our automated production line in a clean room environment is key to reaching the high precision and reliability of the CD500. Its simple interface facilitates a clean, straightforward system architecture. The structure of scan parameters embedded in data ensure fast data transfer.



We offer the CD500 as a stand-alone product and as an integral part of the Xpert bundle, which includes a detector, X-ray tube, high voltage generator, anode drive, interface unit, and cables. Utilizing our extensive knowledge and experience, we help you select the right components for your needs. Our team is at your side during the development phase and throughout the entire product lifecycle.

Specifications CD500

Number of rows

128

SDD (Source to Detector Distance) [mm]

1,040

Field of View [mm]

(@570mm FS to ISO distance)

500

Coverage @ ISO center [mm]

(@570mm FS to ISO distance)

80

Detector channel Pitch size [mm]

X Direction
Z Direction
1.408
1.14

Total number of Detection Elements

86,016

Weight [kg]

102

Maximum Nominal Gantry Speed [RPM]

220

Anti-Scatter Grid Type

2D
